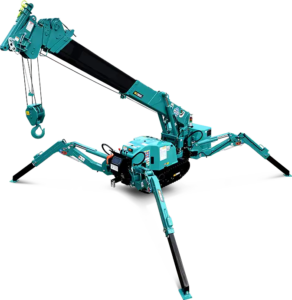

Maeda MC285C-3 (Maeda 285) Spider Crane

Depot · Bay 01 · Spider crane

Maeda MC285C-3

aka “the little one” — spider crane hire, Sydney + Central Coast

Folds down to 750 mm and walks through a standard doorway, then unfolds into a 2.82 tonne crane. At under two tonnes all-up it can work inside buildings and on suspended slabs — which is why it’s the most-booked machine in our depot for backyard renovations, steel beam lifts and glass installation across Sydney and the Central Coast. Compare it with the 305 on our mini crane hire Sydney page.

Get an instant estimate →

Drag the crane to slew, lift and telescope — or use the levers. Free play, nothing to download.

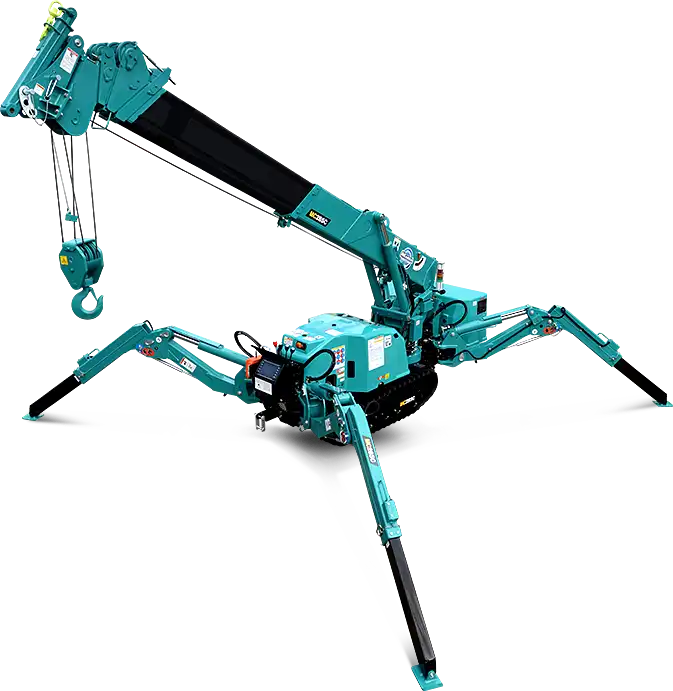

Maeda MC285C-3 spider crane with outriggers deployed
750 mm wide — narrower than your front door

From the spec sheet

2.82 tMax lift @ 1.4 m
750 mmWidth
8.7 mHook height
8.2 mMax radius
1990 kgAll-up weight
4.8×4.7 mFull setup footprint

Working range

01t2t3t02 m4 m6 m8 m2.82 t @ 1.4 m740 kg @ 3.8 m150 kg @ 8.2 m

Read from the official Maeda chart — outriggers fully extended, 4-fall hook.

The closer the lift, the harder it pulls.

Spider cranes trade radius for capacity. Up close the 285 lifts 2.82 t; out at its full 8.2 m radius it still handles 150 kg — a window, a beam end, a bundle of roofing.

Give us the load weight and how far we have to reach, and we’ll tell you in one phone call whether the 285 does it — or whether the job wants the 305’s longer boom.

Tight setup? The 285 is the machine we send when heavy materials have to be lifted in a space most cranes cannot even set up in. It has a specialised confined setup for exactly that. Send us a photo of the spot and we will tell you whether it fits and what it can lift from there.

On the job

Maeda 285 spider crane driving through a standard doorway
REC 01 — straight through the front door, no dismantling
Maeda 285 tracking into a backyard at Alfords Point
REC 02 — getting into a backyard, Alfords Point

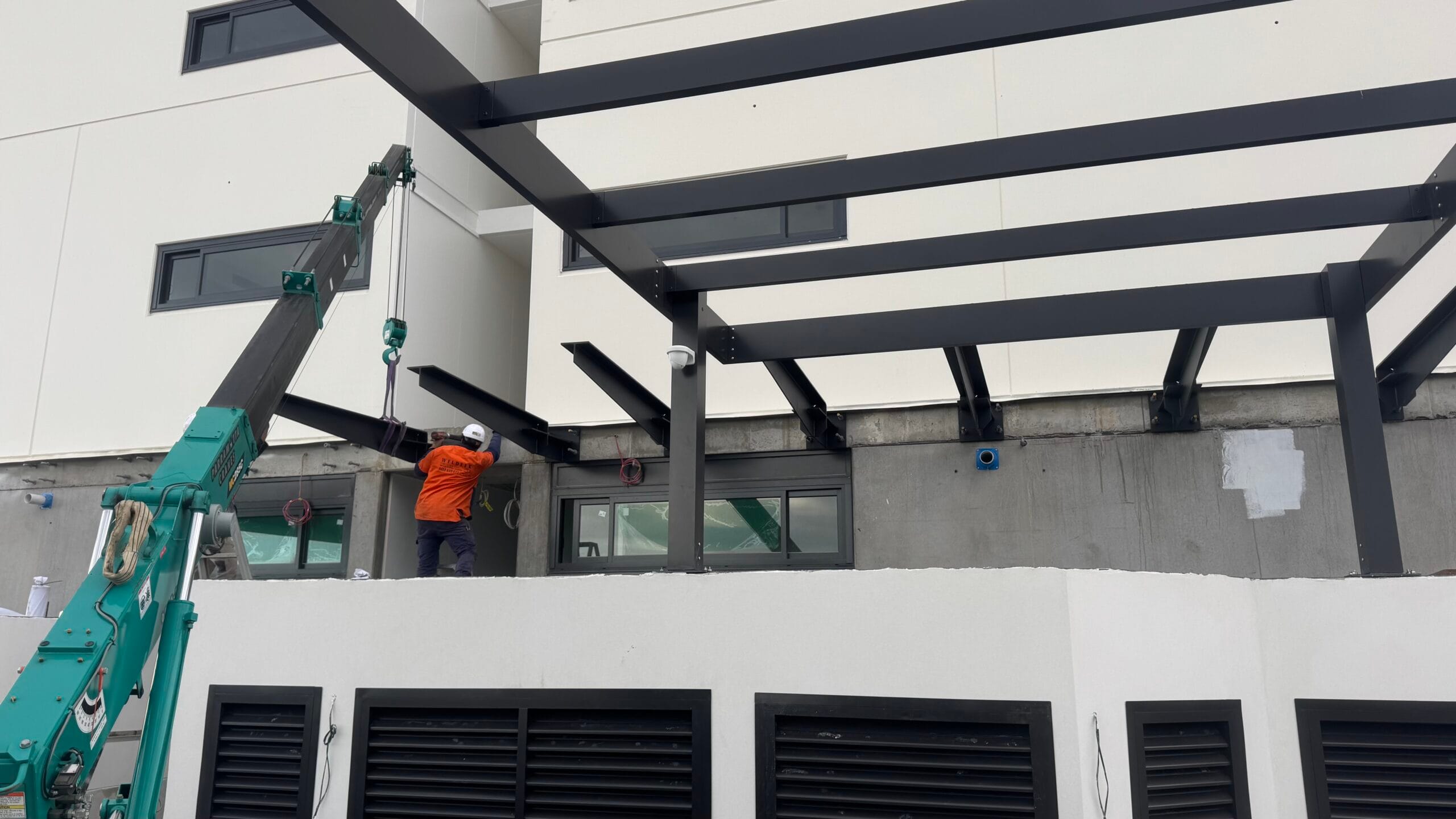

Maeda 285 lifting steel on a commercial project
REC 03 — steel set on a commercial job

Technical data

Maeda MC285C-3 specifications.

Every figure below is taken from the Maeda operation manual and rated load chart for the machine in our depot, not a brochure summary. If a number matters to your lift, it is here.

ItemMaeda MC285C-3
ModelMaeda MC285C-3 mini crawler (spider) crane, standard diesel specification
Max rated capacity2.82 t at 1.4 m working radius, 4-fall hook, outriggers fully extended
Max working radius8.2 m, rated 150 kg at that radius
Max lifting height above ground8.70 m
Max lifting depth below ground10.1 m on 4 falls
BoomFully automatic 5-section pentagonal telescopic boom, 2.535 m to 8.575 m
Boom telescoping6.04 m of stroke in 22 seconds
Boom angle0 to 80 degrees in 14 seconds
Slewing360 degrees continuous, 68 seconds per revolution (0.9 rpm)
WinchHydraulic motor with brake, 9.3 m/min line speed on 4 layers and 4 falls
Hoist ropeIWRC 6 x Fi(29), 7 mm x 48 m
Outriggers fully extended4,782 mm wide (lateral) x 4,718 mm (front) x 3,990 mm (rear)
Outrigger systemTwo-stage legs, gas-damped first stage, manual second-stage pull-out, hydraulic direct-acting cylinders
Travel speed0 to 2.2 km/h forward and reverse, stepless
Gradeability20 degrees
Ground pressure50.0 kPa
Track gauge / track width550 mm / 200 mm rubber tracks
Stowed dimensions (L x W x H)2,800 x 750 x 1,470 mm
Machine mass1,990 kg
EngineYanmar 2TNV70, in-line 2-cylinder water-cooled diesel, 0.569 L, 7.4 kW at 2,500 rpm
Fuel tank12 L diesel
Hydraulic systemDouble variable piston pump, 20.6 MPa rated pressure, 20 L tank
Safety devicesMoment limiter, over-winding and over-unwinding stops, angle indicator, body inclination alarm, outrigger interlock, outrigger setting lights, EMO switch, level
ClassificationMobile crane ISO 4301/2 Group A1

Rated total load, 4 falls, outriggers fully extended

Working radiusRated load
1.4 m2,820 kg
1.5 m2,520 kg
2.0 m1,920 kg
2.5 m1,570 kg
3.0 m1,220 kg
3.5 m970 kg
4.0 m780 kg
4.5 m630 kg
5.0 m530 kg
5.5 m430 kg
6.0 m380 kg
6.5 m350 kg
7.0 m200 kg
7.5 m180 kg
8.0 m150 kg

Read from the official Maeda MC285C-3 rated load chart. Loads are in kilograms and include the 30 kg hook block; the working radius already allows for boom deflection under load. Every lift we quote is checked against this chart at your actual radius and outrigger setup.

Maeda MC285C-3 questions

How much can the Maeda MC285C-3 lift, and at what reach?
Up to 2.82 tonnes at a 1.4 m radius with the outriggers fully extended. Capacity falls quickly as the boom goes out: about 1.2 tonnes at 3 m, 530 kg at 5 m and 150 kg at its full 8.2 m radius. The rated load table on this page gives every step. Send us the load weight and how far the crane has to reach and we confirm in one call whether the 285 does the job or whether it needs the 305.
How wide is the Maeda 285 and what can it get through?
750 mm wide with the tracks in and the boom stowed, 1,470 mm high and 2,800 mm long. That is narrower than a standard Australian front door and most side gates, so it drives through a house, down a side path or into a lift lobby without any dismantling.
How much does the Maeda MC285C-3 weigh, and can it work on a suspended slab?
1,990 kg all up, with 50 kPa of ground pressure on its tracks. That is why it is the machine we use on suspended slabs, upper floors and inside buildings, with timber mats under each outrigger to spread the load. Tell us which floor it will be working on and we plan the setup from there.
What is the difference between the Maeda 285 and the Maeda 305?
The 285 is the smaller, lighter crane: 750 mm wide, 1,990 kg and 8.7 m of hook height, built for doorways, indoor work and slabs. The 305 is 1,280 mm wide, 3,900 kg and reaches 12.52 m, so it lifts over a house and handles heavier steel at longer radius. Both lift close to three tonnes close in; the difference is reach and where they can go.
Can I dry hire the Maeda 285?
No. Every hire includes our ticketed operator, because a spider crane is a slewing mobile crane that needs a C2 high-risk work licence to run. The operator is in the hourly rate and we add riggers and dogmen when the lift needs them, so you do not need your own licence or crew.
What does MC285C-3 mean?
It is Maeda naming: MC is the mini crane range, 285 is the model series, C is the crawler-track base, and the -3 is the current generation of the model. Ours is the standard diesel MC285C-3 with the 4-fall hook block.
Can the Maeda 285 lift into a basement or excavation?
Yes. The hook can travel 10.1 m below the level the crane is standing on with the 4-fall block, so it lifts into basement excavations, lift pits and below-street sites from the kerb or the slab above.
How much does it cost to hire the Maeda 285 in Sydney?
$195 per hour plus GST with the operator included, with a six-hour minimum on site, so a typical day is $1,170 plus travel and GST. Travel to and from your site is quoted up front from our Rydalmere or The Entrance base instead of a float fee, and time past the minimum is charged in 15-minute increments.

Hire terms

$195/hr + GSTOperator included
6-hour site minimumCovers setup + pack-down
24/7 availabilityNights + weekends
Sydney + Central CoastDepots Rydalmere + The Entrance

Travel charged per job. Quotes are based on the job being completed within the quoted timeframe; time beyond that is charged in 15-minute increments. Every hire includes a licensed operator — you never just get keys.
